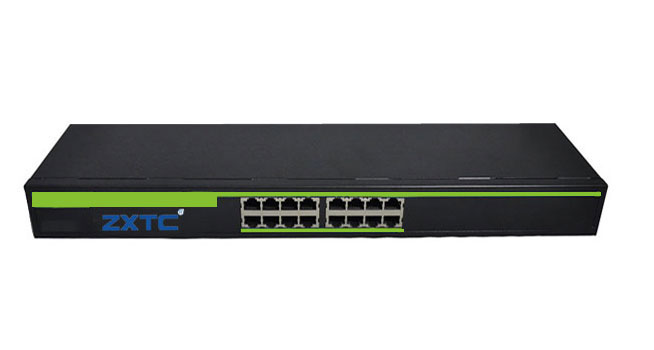

Product Name：16-port 10/100 / 1000M unmanaged Ethernet switch
Specification Model：ZP-6616G
☆ Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Fixed port: 16 10 / 100M adaptive RJ45 port
☆ cable type
10Base-T: 3/4/5 unshielded twisted pair, support the maximum transmission distance of 100m
100Base-TX: Category 5 unshielded twisted pair, support the maximum transmission distance of 100m
☆ LED indicator: power supply, port status
☆ flow control: IEEE 802.3x full-duplex flow control
☆ all ports support half / full duplex mode automatically adapt;
☆ 16 10 / 100M adaptive RJ45 port, support the port automatically flip
☆ using storage exchange mode;
☆ support MAC address self-learning;
☆ exchange capacity: 3.2Gbps
☆ MAC address table: 8K
The ZP-6616G meets the Ethernet multi-service bearer and various Ethernet accesses. Can provide users with a wealth of flexible business features, effectively improve the product can be operational, business expansion capabilities, with excellent protection and security features. You can provide the -48V DC power supply to the remote PD device (such as IP Phone, WLAN AP, Security, Bluetooth AP, etc.) to provide remote power supply to the PD device. As a power supply side PSE (Power Sourcing Equipment) equipment, support IEEE802.3af and IEEE802.3at power supply standard
Technical Parameters:
☆ Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
☆ fixed port: 16 10/100 / 1000M adaptive RJ45 port;
Fast and Gigabit Separate Separate 【Optional】
☆ cable type
10Base-T: 3/4/5 unshielded twisted pair, support the maximum transmission distance of 100m
100Base-TX: Category 5 unshielded twisted pair, support the maximum transmission distance of 100m
1000Base-T: Category 5 unshielded twisted pair, support the maximum transmission distance of 100m
☆ LED indicator: power supply, port status
☆ flow control: IEEE 802.3x full-duplex flow control
☆ all ports support half / full duplex mode automatically adapt;
☆ 16 10 / 100M adaptive RJ45 port, support the port automatically flip
☆ using storage exchange mode;
☆ support MAC address self-learning;
☆ exchange capacity: 3.2Gbps
☆ MAC address table: 8K
☆ forwarding rate: 10Mbps-14880PPS; 100Mbps-148800PPS; 1000Mbps-1488000PPS
☆ input voltage: 100V ~ 240VAC, 50 / 60Hz
☆ Power consumption: <6W
☆ installation: desktop or rack optional
☆ heat way: natural heat
☆ Operating temperature: 0?C ~ 50?C
☆ Storage temperature: -40?C ~ 70?C
☆ Working humidity: 10% ~ 90% RH non-condensing
☆ Storage humidity: 5% ~ 90% RH non-condensing
☆ Size: 260 * 160 * 46 (mm)
