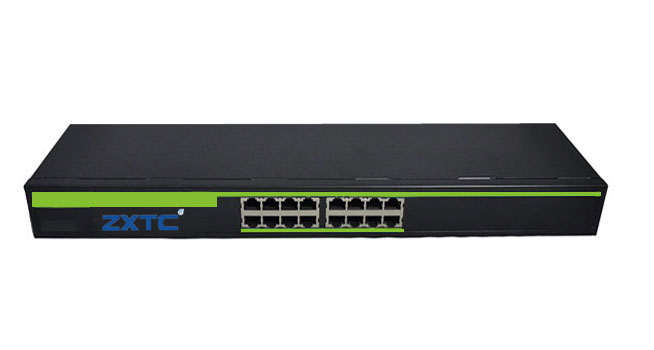

Product Name：16-10 / 100M and 2-Gigabit POE switches
Specification Model：ZP-6616M2SF
Port: 16 megabit ports and 2 gigabit ports
☆ indicator: power, PoE, port rate, port connection
☆ Standards and protocols:
IEEE802.3 10Base-T Ethernet standard
IEEE802.3u 100Base-TX Fast Ethernet standard
IEEE802.3x Full Duplex Flow Control and Backpressure Half Duplex Flow Control
IEEE802.3ab 1000Base-T Ethernet standard
IEEE802.3z Gigabit Ethernet (Fiber)
IEEE802.3x Full Duplex Flow Control and Backpressu
ZP-6016M2SF provides 16 100M POE ports and two independent Gigabit ports, for the IP MAN and enterprise network, to meet the Ethernet multi-service bearer and a variety of Ethernet access. Can provide users with a wealth of flexible business features, effectively improve the product can be operational, manageable and business expansion capabilities, with excellent lightning protection and security features. And support the perfect PoE (Power Over Ethernet) function, you can through the network cable to the remote PD equipment (such as IP Phone, WLAN AP, Security, Bluetooth AP, etc.) to provide -48V DC power supply, Power supply. As a power supply side PSE (Power Sourcing Equipment) equipment, support IEEE802.3af and IEEE802.3at power supply standard, support PoE management, users can flexibly configure the PoE port is powered. S5028 is a 19-inch rack chassis, built-in 500W high power industrial power supply.
Technical Parameters
Port: 16 megabit ports and 2 gigabit ports
☆ indicator: power, PoE, port rate, port connection
☆ Standards and protocols:
IEEE802.3 10Base-T Ethernet standard
IEEE802.3u 100Base-TX Fast Ethernet standard
IEEE802.3x Full Duplex Flow Control and Backpressure Half Duplex Flow Control
IEEE802.3ab 1000Base-T Ethernet standard
IEEE802.3z Gigabit Ethernet (Fiber)
IEEE802.3x Full Duplex Flow Control and Backpressure Half Duplex Flow Control
IEEE802.3ab link aggregation
☆ network media:
10BASE-T: Class 3 and above unshielded / shielded twisted pair (≤100 m)
100BASE-TX: Class 5 and above unshielded / shielded twisted pair (≤100 m)
1000BASE-T: Class 5 and above unshielded / shielded twisted pair (≤100 m)
Power consumption: 250W, 400W
☆ Cooling method: built-in silent fan
☆ PoE port: 8/16 (optional) 100M port
☆ PoE standard: IEEE802.3af, IEEE802.3at, each port provides 15.4W, the maximum 30W
☆ Pin Definition: V + (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)
☆ Layer 2 exchange: exchange capacity 7.2G
☆ MAC address table depth: 8K
☆ flow control: IEEE802.3x full-duplex flow control
☆ working temperature: 0 ℃ ~ 40 ℃
☆ Storage temperature: -10 ℃ ~ 70 ℃
☆ relative humidity: 20% to 85% (non-condensing)
