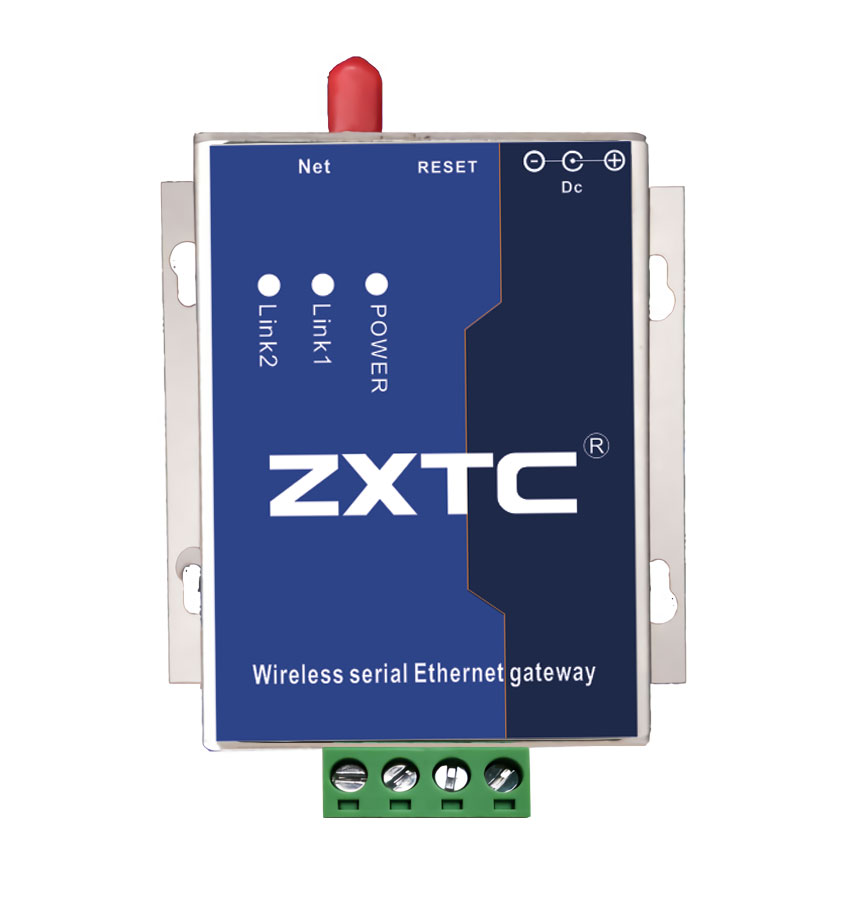

Product Name：Rs485 / 422 to WiFI serial interface server (Modbus)
Specification Model：ZP-8811F
Work mode: TCP Server mode, TCP client mode, UDP mode, virtual serial port, Socket, while wifi module can also be a server, client and other work modes, support point-to-point and point-to-multipoint polling transparent transmission function; For local area network and the Internet, dynamic network transmission function. This product can be set by logging in to the built-in web page. The biggest innovation is that this product can be directly connected with wireless devices such as routers, while supporting Android phones and other wireless terminals to send and receive functions, allowing you to easily achieve remote control of the device, breaking the conventional serial server LAN connection mode; for local area network , Wide area network, Internet, external network, cross gateway and so on.
ZP-8811F serial to WIFI network server supports full transparent transmission, can be truly plug-and-play serial port, the maximum reduction in the complexity of the use of the user. In this mode, simply set the networking parameters in advance, the module can automatically connect to the default wireless network and server after each power. As the serial data is transparent transmission, according to the use of ordinary serial port to send and receive data can be. The original serial device, directly connected to the serial line to replace the cost of the module, the device without any changes can be easily achieved data wireless transmission. Super work mode: TCP Server mode, TCP client mode, UDP mode, virtual serial port, Socket, while wifi module can also be a server, client and other work modes, support point-to-point and point-to-multipoint polling two-way transparent Transmission function; can carry out the local area network and the Internet, the dynamic network transmission function. This product can be set by logging in to the built-in web page. The biggest innovation is that this product can be directly connected with wireless devices such as routers, while supporting Android phones and other wireless terminals to send and receive functions, allowing you to easily achieve remote control of the device, breaking the conventional serial server LAN connection mode; for local area network , Wide area network, Internet, external network, cross-gateway, this feature not only allows you to replace the software, but also allows serial devices immediately network. This product through the Huawei, Siemens, Omron, ABB, Advantech, PLC, Internet of things intelligent control equipment, the South Power Grid, security mines, intelligent home and other testing and the establishment of long-term friendly cooperation.
☆ wireless standard: IEEE802.11b, compatible with IEEE 802.11b / g / n
☆ work frequency band: the world free frequency ISM 2.400 ~ 2.484 GHz
☆ data frequency: up to 50MHZ, support MODE0-MODE3 mode
☆ Interface type: RS485, RS422, wifi
☆ network type: the basic network (Infra), ad hoc network (Adhoc)
☆ security mechanism: WEP64-128, TKIP (WPA-PSK), AES (WPA2-PSK) encryption technology to prevent signal interference and string code, theft, etc.
☆ network protocol: TCP, UDP, ICMP, IGMP, ARP, DHCP, DNS, HTTP, SMTP, SNTP, PPPOE and other protocols.
☆ Serial baud rate: 1200-921600bps
☆ working voltage: DC.12V-36V wide voltage
☆ hardware flow control: RTS / CTS flow control or no flow control; support heartbeat signal, WIFI connection instructions
☆ parameter configuration: AT + instruction set: WEB page configuration / WIFI wireless / serial /
☆ transmission: support point to point, point to multi-point two-way transparent transmission support; support 20 TCP and 4 UDP connection
☆ support UDP broadcast DHCP Server / Client / DNS, support Socket programming interface; support a variety of mobile terminal mobile phone send and receive data
☆ strong variety of work: TCP Server mode, TCP client mode, UDP mode, virtual serial port, Socket, wifi module can also be done server, client and other work modes, support point-to-point and point-to-multipoint polling two-way transparent Transmission function;
☆ can carry out the local area network and the Internet, dynamic network transmission function.
☆ This product can be registered through the built-in WEB page settings. The biggest innovation is that this product can be directly connected with wireless devices such as routers, while supporting mobile phones and other wireless terminals to send and receive functions, allowing you to easily achieve remote control
☆ transmission acquisition function can be in the LAN, WAN, Internet, external network, cross-gateway and other use.
☆ Operating temperature: -40 ℃ ~ +85 ℃; 5 ~ 95% RH humidity
☆ Storage temperature: -70 ~ 150 ° C, 5 ~ 95% RH humidity
☆ Input voltage: 12-36VDC
☆ Size: 160X75X10MM
