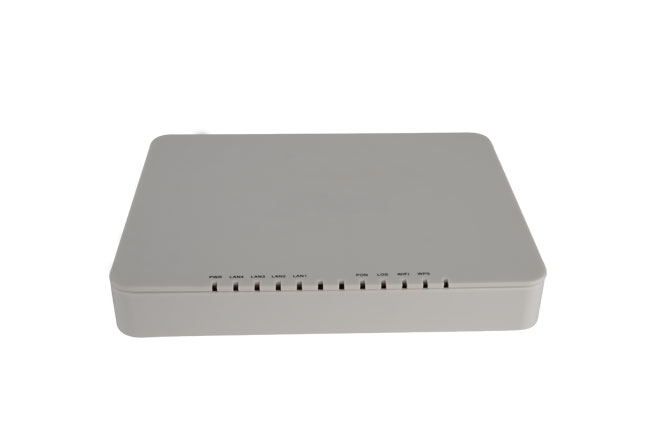

Product Name：GPON-ONT-4RJ45 + 1PON + 2 voice gateway type
Specification Model：ZP-GP614
Fully compatible with ITU-T G.984, using GPON uplink
Supports 2 POTS interfaces
Supports four GE adaptive interfaces
Support OMCI + TR069 management
Ethernet auto-negotiation and MDI / MDIX auto-detection function
Supports configuration of Ethernet interface rates, operating modes, and Pause flow control
ZP-GP614 product is our company for GPON-based broadband access market launched passive optical network client products. The product can meet the FTTH / FTTO fiber to the user needs, providing users based on GPON high-bandwidth access, data, video and voice integrated services.
GPON technology is based on ITU-T G.984 standard latest generation of broadband passive optical network integrated access standard, with high bandwidth, high efficiency, large coverage, user interface, and many other advantages, is the operator to achieve access network services Broadband, integrated transformation of the ideal technology.

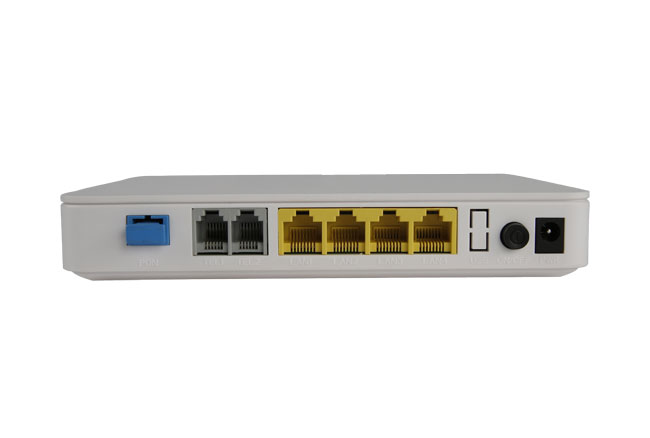

The ZP-GP614 provides two POTS ports and four GE adaptive interfaces. The equipment has been interoperable with the GPON office equipment (OLT) of the industry's leading communications vendors (Huawei / ZTE / Fiberhome / Alcatel-Lucent) to form a Gigabit system to meet the triple play video, voice and data services FTTH / FTTO access requirements. It is characterized by high reliability and quality of service (OOS) guarantee, easy management, flexible upgrade and networking. The functional and performance specifications of the equipment meet the technical specifications of ITU-T, IEEE related recommendations and relevant international standards and industry standards.
Features
Fully compatible with ITU-T G.984, using GPON uplink
Supports 2 POTS interfaces
Supports four GE adaptive interfaces
Support OMCI + TR069 management
Ethernet auto-negotiation and MDI / MDIX auto-detection function
Supports configuration of Ethernet interface rates, operating modes, and Pause flow control
Supports line loopback detection on the user side Ethernet interface
Supports packet filtering and anti-illegal packet attack protection, suppresses unknown unicast, broadcast and multicast packets
Supports Ethernet line performance statistics
Support VLAN tag handling, traffic classification and packet filtering, STP / RSTP protocol and other functions
Supports the physical location information of the DHCP interface on the Ethernet interface
Support PPPoE + function, for the user's precise identification
Support H.248, MGCP and SIP and other voice protocols
Support for IGMP Snooping
Support AES-128 decryption, support key generation and switching
Supports dual management modes based on DBA technology and priority to ensure minimum bandwidth requirements for users
Technical Parameters:
☆ PON interface: 1 meet the FSAN G.984.2 standard GPON interface
☆ Down speed: 2.488Gbps; Uplink rate: 1.244Gbps
☆ SC / PC single-mode single fiber
☆ support 28dB link (FSAN Class B +) 30 km range access, 1: 128 spectral
☆ user port (LAN port) 4 10/100 / 1000M adaptive Ethernet port
☆ RJ45 electrical port, support cross-direct adaptation
☆ transmission distance of 100 meters
☆ User port (voice)
☆ Number of ports 2
☆ Connector type RJ-11
☆ transmission distance of up to 1km
☆ and the number of telephone 3REN (3 phone)
☆ Ringing voltage Vrms> 50V
☆ power interface 12V DC power supply interface
☆ equipment management
The management approach supports OMCI management channels based on G.984.4
Support TR-O69 remote management and WEB management
Management function status monitoring, configuration management, alarm management, log management
☆ power supply, power consumption external 12V / 1A DC power adapter power supply
☆ Power consumption: <6W
☆ Working temperature: 0 ~ 50 ℃
☆ Storage temperature: -40 ~ 85 ℃
☆ Working humidity: 10% ~ 90% non-condensing
☆ Storage humidity: 10% to 90% non-condensing
☆ Size: 170mm (L) * 130mm (W) * 30mm (H)
