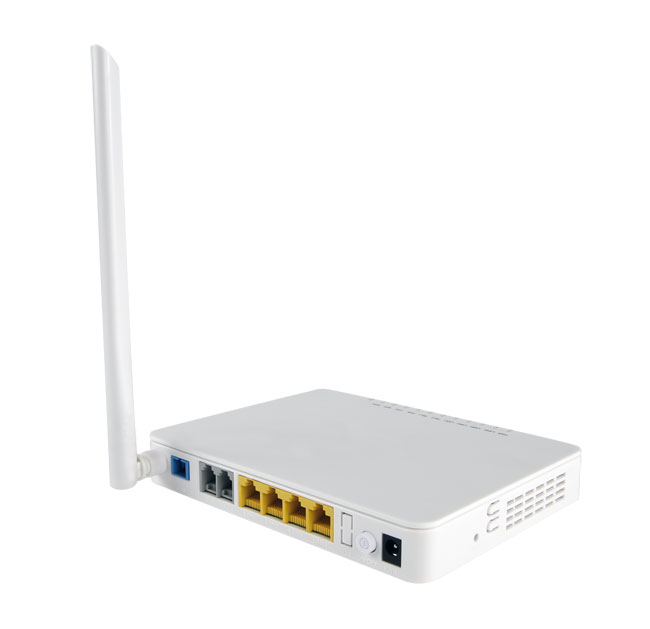

Product Name：Wireless GPON-ONT-4RJ45 + 1PON + 2 voice gateway type
Specification Model：ZP-GP1614GW
Fully compatible with ITU-T G.984, using GPON uplink
Supports 2 POTS interfaces
Supports four GE adaptive interfaces
Supports one 802.11 n / b / g WiFi interface
Support OMCI + TR069 management
Ethernet auto-negotiation and MDI / MDIX auto-detection function
Supports configuration of Ethernet interface rates, operating modes, and Pause flow control
ZP-GP1614GW product is our company for GPON-based broadband access market launched passive optical network client products. The product can meet the FTTH / FTTO fiber to the user needs, providing users based on GPON high-bandwidth access, data, video and voice integrated services.
GPON technology is based on ITU-T G.984 standard latest generation of broadband passive optical network integrated access standard, with high bandwidth, high efficiency, large coverage, user interface, and many other advantages, is the operator to achieve access network services Broadband, integrated transformation of the ideal technology.
The ZP-GP614 provides two POTS ports, four GE adaptive interfaces and one 802.11 n / b / g WiFi interface. The equipment has been interoperable with the GPON office equipment (OLT) of the industry's leading communications vendors (Huawei / ZTE / Fiberhome / Alcatel-Lucent) to form a Gigabit system to meet the triple play video, voice and data services FTTH / FTTO access requirements. It is characterized by high reliability and quality of service (OOS) guarantee, easy management, flexible upgrade and networking. The functional and performance specifications of the equipment meet the technical specifications of ITU-T, IEEE related recommendations and relevant international standards and industry standards.
Features
Fully compatible with ITU-T G.984, using GPON uplink
Supports 2 POTS interfaces
Supports four GE adaptive interfaces
Supports one 802.11 n / b / g WiFi interface
Support OMCI + TR069 management
Ethernet auto-negotiation and MDI / MDIX auto-detection function
Supports configuration of Ethernet interface rates, operating modes, and Pause flow control
Supports line loopback detection on the user side Ethernet interface
Supports packet filtering and anti-illegal packet attack protection, suppresses unknown unicast, broadcast and multicast packets
Supports Ethernet line performance statistics
Support VLAN tag handling, traffic classification and packet filtering, STP / RSTP protocol and other functions
Supports the physical location information of the DHCP interface on the Ethernet interface
Support PPPoE + function, for the user's precise identification
Support H.248, MGCP and SIP and other voice protocols
Support for IGMP Snooping
Support AES-128 decryption, support key generation and switching
Supports dual management modes based on DBA technology and priority to ensure minimum bandwidth requirements for users
Technical Parameters:
☆ PON interface: 1 meet the FSAN G.984.2 standard GPON interface
☆ Down speed: 2.488Gbps; Uplink rate: 1.244Gbps
☆ SC / PC single-mode single fiber
☆ support 28dB link (FSAN Class B +) 30 km range access, 1: 128 spectral
☆ user port (LAN port) 4 10/100 / 1000M adaptive Ethernet port
☆ RJ45 electrical port, support cross-direct adaptation
☆ transmission distance of 100 meters
☆ User port (voice)
☆ Number of ports 2
☆ Connector type RJ-11
☆ transmission distance of up to 1km
☆ and the number of telephone 3REN (3 phone)
☆ Ringing voltage Vrms> 50V
☆ power interface 12V DC power supply interface
☆ equipment management
The management approach supports OMCI management channels based on G.984.4
Support TR-O69 remote management and WEB management
Management function status monitoring, configuration management, alarm management, log management
☆ WIFI performance parameters
Conforms to IEEE802.11n protocol standard, 2.4 GHz-
With the traditional IEEE802.11b / g fully compatible with the performance has improved
Using dual-stream spatial multiplexing technology, the physical layer protocol data rate up to 300Mbps
Supports multiple SSIDs (up to 4 SSIDs)
Support for automatic selection of channels
Support SSID hidden
Support 64/128 bit WEP, 802.1x, WPA and WPA2 wireless security
☆ encryption mode 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
Channel 13 channels can be configured to the United States, Canada, Europe, Japan, China and other regional norms.
☆ Modulation method DSSS, CCK and OFDM
☆ coding program BPSK, QPSK, 16QAM and 64QAM
☆ RF reception sensitivity
802.11b:
-82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g:
-82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
☆ working mode routing and bridge mode
rate
IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 135Mbps
☆ Frequency range 2.412 ~ 2.472 GHz
☆ RF maximum output power
802.11b:
16.5 ± 1dBm
802.11g:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
802.11n:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
☆ power supply, power consumption external 12V / 1A DC power adapter power supply
☆ Power consumption: <6W
☆ Equipment size: 170mm (L) * 130mm (W) * 30mm (H)
☆ Working temperature: 0 ~ 50 ℃
☆ Storage temperature: -40 ~ 85 ℃
☆ Working humidity: 10% ~ 90% non-condensing
☆ Storage humidity: 10% to 90% non-condensing
☆ Size: 170mm (L) * 130mm (W) * 30mm (H)
