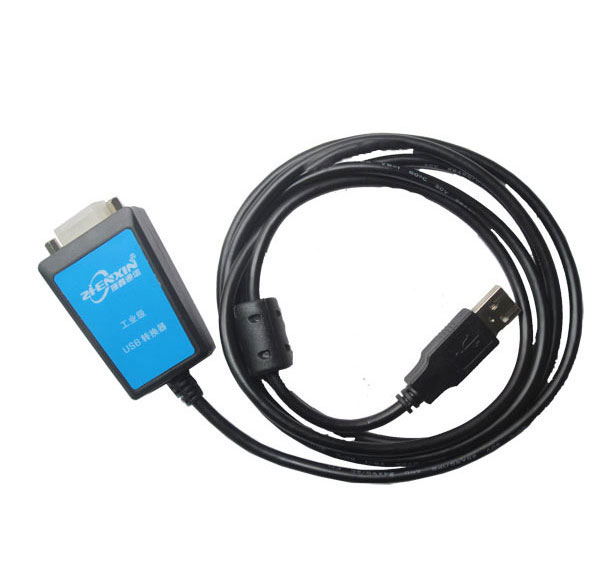

Product Name：USB to RS485 / 422Android converter-1.8m
Specification Model：ZP-920
☆ Fully compatible with USB-2.0 1.1 1.0 standard
☆ support RS-485/422 interface, while compatible with Andrews (android) system, the first domestic.
☆ RS-422/485 interface DB9 pin connector
☆ USB signal: VCC, DATA- DATA + GND FG; USB cable with magnetic ring shielding function, anti-signal interference is very strong
☆ RS-422 signal: T / R + T / R- RXT + RXD-; full duplex bidirectional communication
☆ RS-485 signal: T / R + T / R-GND half-duplex two-way communication
☆ transmission medium: twisted pair / shielded wire
☆ load capacity: RS422 load 10 devices, RS485 maximum 32 devices
☆ baud rate: 100 - 921600bps automatically detect the serial transmission speed
☆ full copper long 1.8M, with magnetic ring shielding function, import industrial
ZXTC company for the corresponding large number of new and old customers, especially in industrial automation, finance, security, industrial communications demanding, R & D and production of industrial-grade USB to serial line, both from the line material (copper) length extended 1.8M, Serial solid core nine needle (the market is the use of aluminum hollow pin material) and the United States imported original program, more with magnetic ring shielding isolation function, compatible with Andrews system truly industrial communications products.
Applications
(ATM), point-of-sale terminal (POS), automatic retail kiosk, embedded industrial automation system, PLC, Siemens, Omron, financial payment ATM system, transportation system, factory automation and process control, building automation, medical system, Remote access server, storage network management, automatic information programming.
☆ Fully compatible with USB-2.0 1.1 1.0 standard
☆ support RS-485/422 interface, while compatible with Andrews (android) system, the first domestic.
☆ RS-422/485 interface DB9 pin connector
☆ USB signal: VCC, DATA- DATA + GND FG; USB cable with magnetic ring shielding function, anti-signal interference is very strong
☆ RS-422 signal: T / R + T / R- RXT + RXD-; full duplex bidirectional communication
☆ RS-485 signal: T / R + T / R-GND half-duplex two-way communication
☆ transmission medium: twisted pair / shielded wire
☆ load capacity: RS422 load 10 devices, RS485 maximum 32 devices
☆ baud rate: 100 - 921600bps automatically detect the serial transmission speed
☆ full copper long 1.8M, with magnetic ring shielding function, import industrial program, serial pin solid core, communication more stable, faster, packet loss rate is zero.
☆ data (TXD) automatic flow control, zero delay design
☆ support automatic handshake agreement
☆ support remote wake-up and power management
☆ USB bus directly to the power, no external power supply
☆ +/- 15KV ESD anti-static protection
☆ use of the environment: -40 ℃ to 85 ℃, relative humidity of 5% to 95%
☆ Support system:
Windows Server 2008; Windows Server 2008; Windows Server 2008 x64; Windows Vista; Windows Server 2008; Windows Server 2008; Windows 7 ; Windows 8 x64; Windows 8.1; Windows 8.1 x64; Windows 10; Windows 10 x64; Linux, Mac OS, Android systems
