4-port RS422 / 485/232 to Ethernet serial port server--ZXTC TECHNOLOGY(SHENZHEN)CO., LTD.

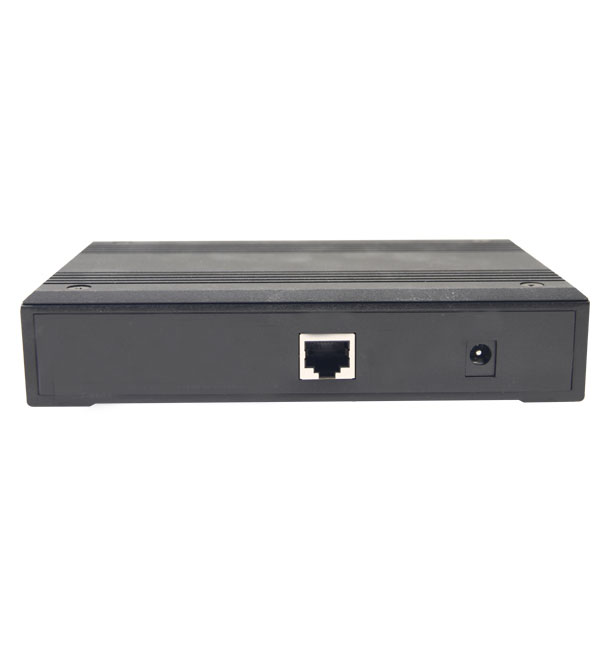

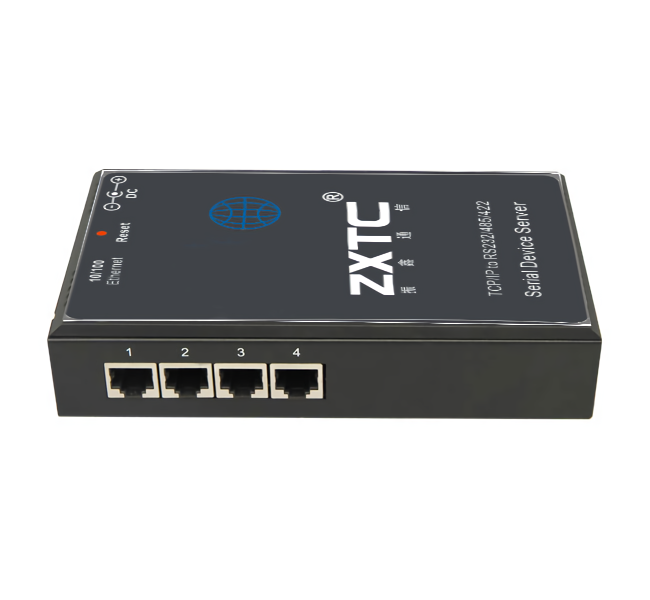

The ZP-8404 serial server is a converter between the asynchronous serial port RS232 / 422/485 and Ethernet. Is an independent intelligent device with CPU and embedded OS and complete TCP / IP protocol stack. Complete the RS232 / 422/485 and Ethernet data between the two-way transparent transmission, allowing RS232 / 422/485 serial device immediately connected to the network.
It is especially suitable for railway, military, financial and securities, customs, civil aviation, maritime transport, industrial automation, PLC, Siemens, Omron, ABB, electricity, water conservancy, security, industrial distribution network system, card and consumption system, power system, PV system, building automation system, intelligent home, data meter and other access control systems, time and attendance systems, access control systems, vendors, POS systems, building automation systems, self-service banking systems, telecommunications room monitoring, power monitoring and other broadband data network And the field of industrial communications that require high-reliability data transmission or the formation of IP data transmission networks

Technical Parameters:
☆ 10 / 100M adaptive Ethernet interface;
☆ serial interface: 232,485,422
☆ baud rate: 100-460800bps or more and can choose to manually or automatically set to avoid too much data caused by unstable delay or packet loss problems
☆ CPU / cache: 32bit 100MHz high-performance processor
☆ parity: no parity, odd parity, even parity, data bits: 7,8 bit
☆ Stop bit: 1,2 bit stream control: no flow control, RTS / CTS
☆ serial protection: 500W lightning surge protection, 2KV electromagnetic isolation protection; anti-lightning and photoelectric isolation and other functions
☆ TCP / IP standard protocol, serial port in line with RS232 / 485/422 protocol, support standard Modbus RTU, Modbus ASCII, Modbus TCP / IP and other protocols. Products can cross-gateways, routers, external networks, LAN, link industrial Ethernet switches, fiber-optic network serial three-in-one equipment and related network communications products.
☆ transmission medium: ultra-five twisted pair shielded wire
☆ working mode: TCP Server mode, TCP client mode, UDP mode, virtual serial port, Socket, VIrtaur and other six modes of operation, support point-to-point and point-to-multipoint polling transparent transmission function; and the product after the upgrade support and carry ADSL, WIFI and other functional products Socket communication mode.
☆ support AUTO MDI / MDIX, can use crossover cable or parallel cable to connect two-way transmission; support DNS dynamic and static IP remote connection.
☆ This product can be used to extend the distance between the handle of the handle, eliminating the need to use the PC host in the middle of the cumbersome configuration, only a network cable or switch can be; reliable all the way to another serial port serial data transmission, There is no way to network, you only need a simple two-step set, you can achieve the demand.
☆ working protocol support TCP, UDP, ICMP, IGMP, modbus, IPV4ARP, etc .; can and routers, gateways and other dynamic "IP" directly connected to achieve cross-network Internet work, to break the serial server normal LAN mode. Point-to-point and point-to-multipoint polling communication modes can be used.
☆ support virtual serial port work mode;
☆ working port, destination IP address and port number can be easily set with our management software;
☆ through the AT command, through the serial port software configuration module parameters
☆ network disconnect can be automatically disconnected to ensure that the entire network to establish a reliable TCP connection;
☆ flexible serial data framing settings to meet the needs of users of various subcontracting;
☆ UDP mode prohibits the package broadcast, anti-interference ability than similar products;
☆ In the case of high-speed data transmission, heat is still relatively low.
Support DNS dynamic domain name remote connection.
☆ Operating temperature: -40 ~ 85 ° C, 5 ~ 95% RH humidity
☆ Storage temperature: -70 ~ 150 ° C, 5 ~ 95% RH humidity
☆ Input voltage: 12-24VDC

☆ Size: Length 86X wide 84X high 25MM
