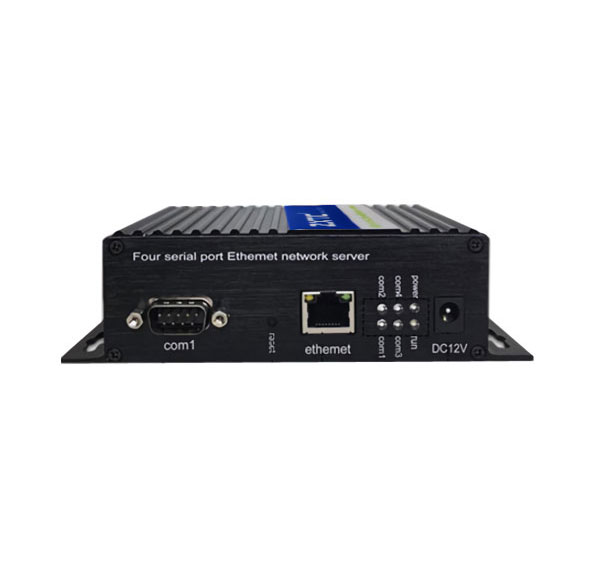

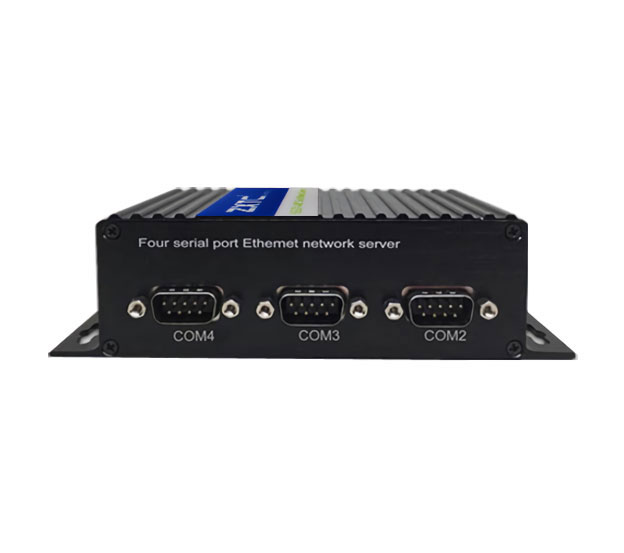

Product Name：4-port RS232 to Ethernet serial server [Modbus]
Specification Model：ZP-8404A
☆ 10 / 100M adaptive Ethernet interface;
☆ serial interface: 4 232
☆ baud rate: 100-1024000bps or more and can choose to manually or automatically set to avoid too much data caused by unstable delay or packet loss problems
CPU / cache: 32bit ARM9 100MHz high-performance cache processor and integrated with the system more stable and efficient.
☆ parity: no parity, odd parity, even parity, data bits: 7,8 bit
☆ Stop bit: 1,2 bit stream control: no flow control, RTS / CTS
☆ serial protection: 500W lightning surge protection, 2KV electromagnetic isolation protection; anti-lightning and photoelectric isolation and other functions
TCP / IP standard protocol, the serial port in line with RS232 / 485/422 protocol, support standard ModbusRTU, ModbusASCII, ModbusTCP / IP, ModbusTCP to Modbus RTU, Modbus RTU to ModbusTCP and other protocols. Products can cross-gateways, routers, external networks, LAN, link industrial Ethernet switches, fiber-optic network serial three-in-one equipment and related network communications products.
ZP-8404A serial device network server allows your serial device immediately network, through the software directly access the network of serial devices. Compact design, rugged, user-friendly interface allows your serial networking solution to be stable and reliable. Standard TCP / IP interface and a variety of operating modes, serial device network server using standard TCP / IP interface, provides TCP Server, TCP Client, UDP, Socket, Real COM and other six modes of operation for COM port software now Can be used at any time for TCP / IP network, support modbus protocol. The biggest innovation is that this product can be directly connected with the router, breaking the conventional serial server LAN connection mode; this feature not only allows you to replace the software, but also allows serial devices immediately networked. This product through Huawei, Siemens, Omron, ABB, Advantech, China Southern Power Grid and other testing and the establishment of long-term friendly cooperation.
Technical Parameters:
☆ 10 / 100M adaptive Ethernet interface;
☆ serial interface: 4 232
☆ baud rate: 100-1024000bps or more and can choose to manually or automatically set to avoid too much data caused by unstable delay or packet loss problems
CPU / cache: 32bit ARM9 100MHz high-performance cache processor and integrated with the system more stable and efficient.
☆ parity: no parity, odd parity, even parity, data bits: 7,8 bit
☆ Stop bit: 1,2 bit stream control: no flow control, RTS / CTS
☆ serial protection: 500W lightning surge protection, 2KV electromagnetic isolation protection; anti-lightning and photoelectric isolation and other functions
TCP / IP standard protocol, the serial port in line with RS232 / 485/422 protocol, support for standard ModbusRTU, ModbusASCII, ModbusTCP / IP, ModbusTCP to Modbus RTU, Modbus RTU to ModbusTCP and other protocols. Products can cross-gateways, routers, external networks, LAN, link industrial Ethernet switches, fiber-optic network serial three-in-one equipment and related network communications products.
☆ This product has a unique domain name resolution function, user-friendly way through the domain name to achieve remote monitoring of serial device function to achieve monitoring; serial device and monitoring server through the Internet interconnection across the city area communication.
☆ transmission medium: ultra-five twisted pair shielded wire
☆ work mode: TCP Server mode, TCP client mode, UDP mode, virtual serial port, Socket, Telnet and other work modes, support point-to-point and point-to-multipoint polling transparent transmission function; and the product after the upgrade support and carry ADSL, WIFI and other functional products Socket communication mode.
☆ support AUTO MDI / MDIX, can use crossover cable or parallel cable to connect two-way transmission; support DNS dynamic and static IP remote connection.
☆ This product can be used to extend the distance between the handle of the handle, eliminating the need to use the PC host in the middle of the cumbersome configuration, only a network cable or switch can be; reliable all the way to another serial port serial data transmission, There is no way to network, you only need a simple two-step set, you can achieve the demand.
☆ working protocol support TCP, UDP, ICMP, IGMP, modbus, IPV4ARP, etc .; can and routers, gateways and other dynamic "IP" directly connected to achieve cross-network Internet work, to break the serial server normal LAN mode. Point-to-point and point-to-multipoint polling communication modes can be used.
☆ support virtual serial port work mode;
☆ working port, destination IP address and port number can be easily set with our management software;
☆ through the AT command, through the serial software, WEB page configuration module parameters
☆ network disconnect can be automatically disconnected to ensure that the entire network to establish a reliable TCP connection;
☆ flexible serial data framing settings to meet the needs of users of various subcontracting;
☆ UDP mode prohibits the package broadcast, anti-interference ability than similar products;
☆ In the case of high-speed data transmission, heat is still relatively low.
Support DNS dynamic domain name remote connection.
☆ Operating temperature: -40 ~ 85 ° C, 5 ~ 95% RH humidity
☆ Storage temperature: -70 ~ 150 ° C, 5 ~ 95% RH humidity
☆ Input voltage: 12-24VDC
☆ Size: 164X104X43MM
