2-RS232 + WIFI + Ethernet two-way serial port network server [Modbus]--ZXTC TECHNOLOGY(SHENZHEN)CO., LTD.

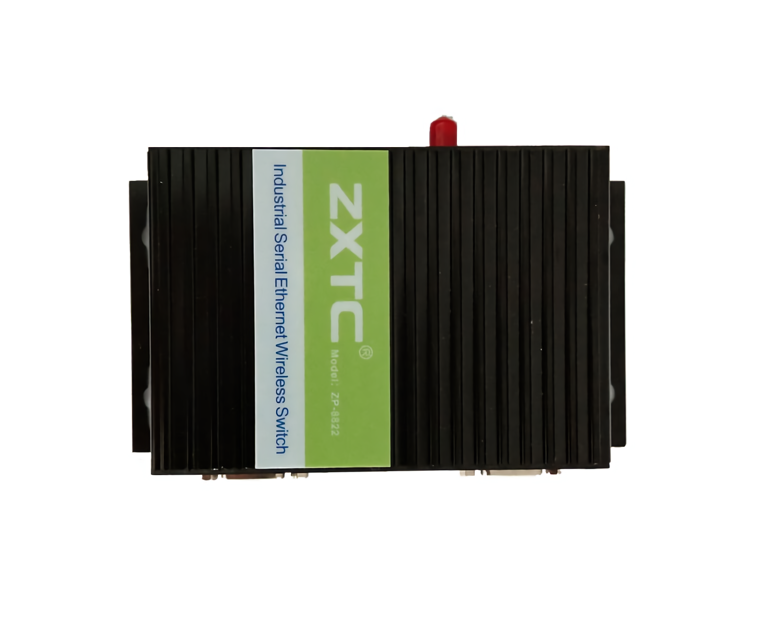

ZP-8822W serial port, Ethernet, WIFI, Wan, LAN multi-function serial port network server, this function is suitable for complex large-scale occasions, the use of integrated wiring, while wired and wireless networks and serial transmission between the independent conversion. To solve a lot of electricity, rail transportation, industrial equipment, intelligent home, information transmission control acquisition and other electromagnetic interference transmission function. Module has a serial port to wifi, Ethernet to WIFI, serial to Ethernet two-way conversion transfer between the powerful function; in the serial port to do wifi router function plug and play; Ethernet to wifi mode to establish a wireless network signal, can effectively solve Wireless coverage blind and weak signal characteristics, to provide customers with serial, wireless, wired three-in-one three-dimensional network solutions.
It is especially suitable for railway, military, financial and securities, customs, civil aviation, maritime transport, industrial automation, PLC, Siemens, Omron, ABB, electricity, water conservancy, security, industrial distribution network system, card and consumption system, power system, PV system, building automation system, intelligent home, data meter and other access control systems, time and attendance systems, access control systems, vendors, POS systems, building automation systems, self-service banking systems, telecommunications room monitoring, power monitoring and other broadband data network And the field of industrial communications that require high-reliability data transmission or the formation of IP data transmission networks

Technical Parameters:
☆ Support protocols and standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, CSMA / CA, CSMA / CD, TCP / IP, DHCP, ICMP, NAT, PPPoE
☆ 10 / 100M support cable transmission support POE power supply
☆ transmission network segment: LAN / Internet / Internet / network
☆ network media: 10Base-T; 3 or 3 or more
☆ communication mode: AP / CLIENT / UDP / virtual serial port
☆ serial number: 2 485, two serial ports and wireless port and wireless WIFI can be independent of the signal transmission work, do not interfere with each other.
LAN port: access network equipment such as: switches, computers, transceivers and other external equipment; WAN port: access to external network data.
Operating mode:
☆ Ethernet to wifi mode: the use of equipment bridging function, the product and another set up a wireless network connection, through its own wireless signal to form a signal coverage, effectively solve the wireless signal weak and blind spot area.
☆ serial to WIFI (AP) mode: the two master and slave AP in this mode into the client mode, the equivalent of wireless card, no need to configure plug and play.
☆ Internet mode: the serial device without any changes in the case, through the Internet (Internet) directly for data transmission, easy access to the Internet equipment to work, breaking the traditional LAN mode.
☆ WAN port can connect to the external network; LAN port can be connected to the network; support wired to wireless, wireless to wired, serial to WIFI three modes alone conversion, the formation of local area network, Internet, serial port seamless docking transmission.
☆ protection: serial and signal using 15KV isolation protection, 600W surge protection.
☆ wireless transmission distance: 300 meters
☆ Spread Spectrum Technology DSSS (Direct Sequence Spread Spectrum)
☆ transmission rate
135 / 121.5 / 108/81/54 / 40.5 / 27 / 13.5 Mbps; 135 / 121.5 / 108/81/54 / 40.5 / 27 / 13.5 Mbps;
130/117/104/78/52/39/26 / 13Mbps; 65 / 58.5 / 52/39/26 / 19.5 / 13 / 6.5Mbps
IEEE 802.11g: 54/48/36/24/18/12/9/6
☆ Sensitivity @PER (wrong packet rate)
1500M: -68dBm @ 10% PER 130M: -68dBm @ 10% PER 108M: -68dBm @ 10% PER 54M: -72dBm @ 10% PER
11M: -85dBm @ 8% PER 6M: -88dBm @ 10% PER 1M: -90dBm @ 8% PER
☆ Data modulation: DBPSK, DQPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
☆ frequency range 2.4 ~ 2.4835GHz
☆ QoS Management Set Upstream Bandwidth Management / Set Downstream Bandwidth Management System Services
☆ Virtual server: set the internal server to provide access to Internet users
☆ port trigger: wireless router can be achieved according to the local area network to access the Internet port to automatically open the inward service port
☆ Working temperature: -40-85 °
