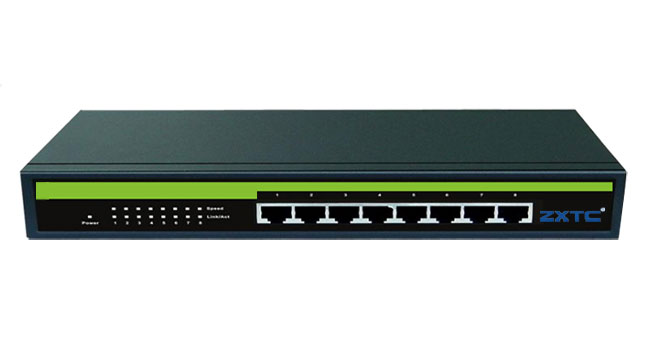

Product Name:8-port 10/100 / 1000M unmanaged Ethernet switch

Specification Model:ZP-6608G

☆ Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Fixed port: 8 10 / 100M adaptive RJ45 port
☆ cable type
10Base-T: 3/4/5 unshielded twisted pair, support the maximum transmission distance of 100m
100Base-TX: Category 5 unshielded twisted pair, support the maximum transmission distance of 100m
☆ LED indicator: power supply, port status
☆ flow control: IEEE 802.3x full-duplex flow control
☆ all ports support half / full duplex mode automatically adapt;
☆ 8 10 / 100M adaptive RJ45 port, support port auto flip
☆ using storage exchange mode;
☆ support MAC address self-learning;
☆ exchange capacity: 16Gbps
☆ MAC address table: 4K
☆ forwarding rate: 10Mbps-14880PPS; 100Mbps-148800PPS; 1000Mbps-1488000PPS
☆ input voltage: 100V ~ 240VAC, 50 / 60Hz
