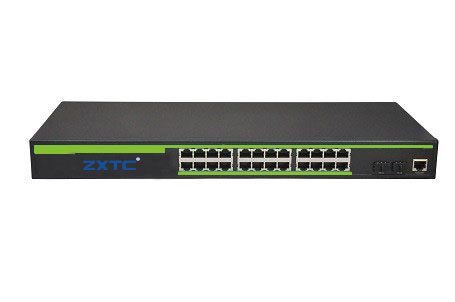

Product Name：24-10 / 100 / 1000M + 2-Gigabit SFP Managed PoE Switches
Specification Model：ZP-6624M2SF
☆ port: 24 Gigabit ports, 2 SFP optical port 1 configuration serial port
☆ indicator: power, PoE, port rate, port connection
☆ Input voltage: 100V ~ 240V AC, 50 / 60Hz
☆ Power consumption: 270W / 400W / 500W (250W / 380W / 480WPoE power)
☆ cooling mode built-in silent fan
☆ PoE port: 16/24 (optional) Gigabit port
☆ PoE standard: IEEE802.af, IEEE802.at each port provides 15.4W, maximum support 30W
☆ Pin Definition: V + (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2)
PoE management: Supports port-based PoE status display and PoE switch control
☆ second floor exchange
Exchange capacity: 52G
MAC address table depth: 8K, support MAC address table management

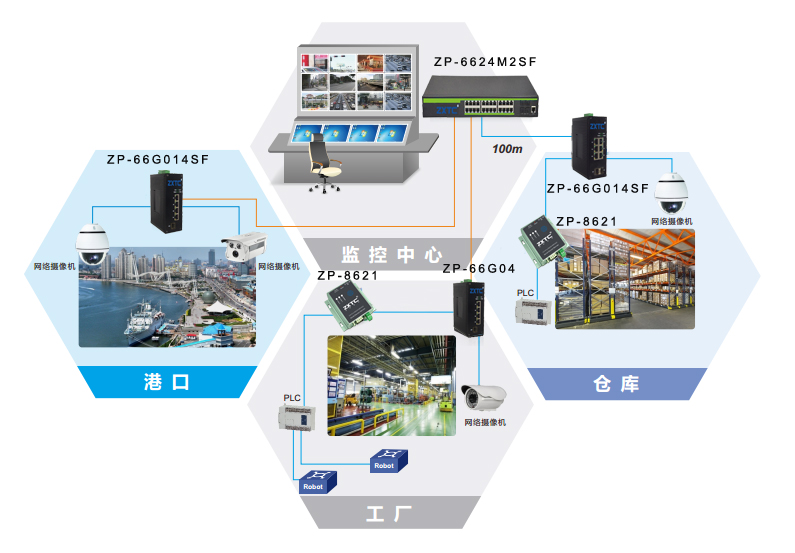

ZP-624M4SF provides 24 Gigabit POE ports and two independent Gigabit SFP uplink ports, for the IP MAN and enterprise network, to meet the Ethernet multi-service bearer and a variety of Ethernet access. Can provide users with a wealth of flexible business features, effectively improve the product can be operational, manageable and business expansion capabilities, with excellent lightning protection and security features. And support the perfect PoE (Power Over Ethernet) function, you can through the network cable to the remote PD equipment (such as IP Phone, WLAN AP, Security, Bluetooth AP, etc.) to provide -48V DC power supply, Power supply. As a power supply side PSE (Power Sourcing Equipment) equipment, support IEEE802.3af and IEEE802.3at power supply standard, support PoE management, users can flexibly configure the PoE port is powered. S5028 is a 19-inch rack chassis, built-in 500W high power industrial power supply
Technical Parameters
☆ port: 24 Gigabit ports, 2 SFP optical port 1 configuration serial port
☆ indicator: power, PoE, port rate, port connection
☆ PoE port: 16/24 (optional) Gigabit port
☆ PoE standard: IEEE802.af, IEEE802.at each port provides 15.4W, maximum support 30W
☆ Pin Definition: V + (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2)
PoE management: Supports port-based PoE status display and PoE switch control
☆ exchange capacity: 52G
☆ MAC address table depth: 8K,
Support MAC address table management
☆ support MAC address binding:
☆ support MAC address filtering:
Support port-based MAC address learning control
☆ exchange cache: 12Mbit
Port feature port control port isolation port loop detection port mirroring support
☆ VLAN: 4K 802.1q VLANs
Link Aggregation: Supports 8 TRUNK groups, each supporting up to 8 ports.
☆ flow control: support IEEE802.3x and back pressure
☆ bandwidth control: the smallest particles: 64kbps.
☆ Spanning Tree Protocol: IEEE 802.1d Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multi-Process Spanning Tree Protocol (MSTP)
Ring network agreement: support EAPS.
☆ multicast: support 256 Layer 2 multicast table capacity: support IGMP snooping.
☆ Layer 3 exchange: static ARP, support static routing
☆ support: three VLAN interface: the largest 32 three VLAN interface
☆ quality of service control
ACL: Supports 256 ACLs based on standard IP, extended IP, MAC IP, and ARP
QoS: Supports four different priority queues per port, support flexible queue scheduling algorithm: WRR, Q + WRR, support based on port / MAC / 802.1p / based on DSCP classification
☆ security features: support based on MAC 802.1X recognition, support AAA / RADIUS authentication, support WEB / Telnet login password protection, support access privilege mode password protection
☆ CPU protection: support CPU self-protection
Management: CLI support command line
☆ Console: support local serial port management
☆ Telnet: support Telnet.
☆ WEB: support WEB interface
SNMP: Supports SNMP v1 / v2 / v3.
☆ user management: support multi-user management
☆ system log: support configuration upload and download, support through WEB or TFTP upload / download configuration file
☆ firmware upgrade: support through WEB, TFTP or serial upgrade firmware
☆ debugging: support PING, TRACEROUTE, Telnet client, display process
☆ Input voltage: 100V ~ 240V AC, 50 / 60Hz
☆ Power consumption: 270W / 400W / 500W (250W / 380W / 480WPoE power)
☆ cooling mode built-in silent fan
☆ working temperature 0 ℃ ~ 50 ℃
☆ Storage temperature -10 ℃ ~ 70 ℃
☆ relative humidity of 20% to 85%
