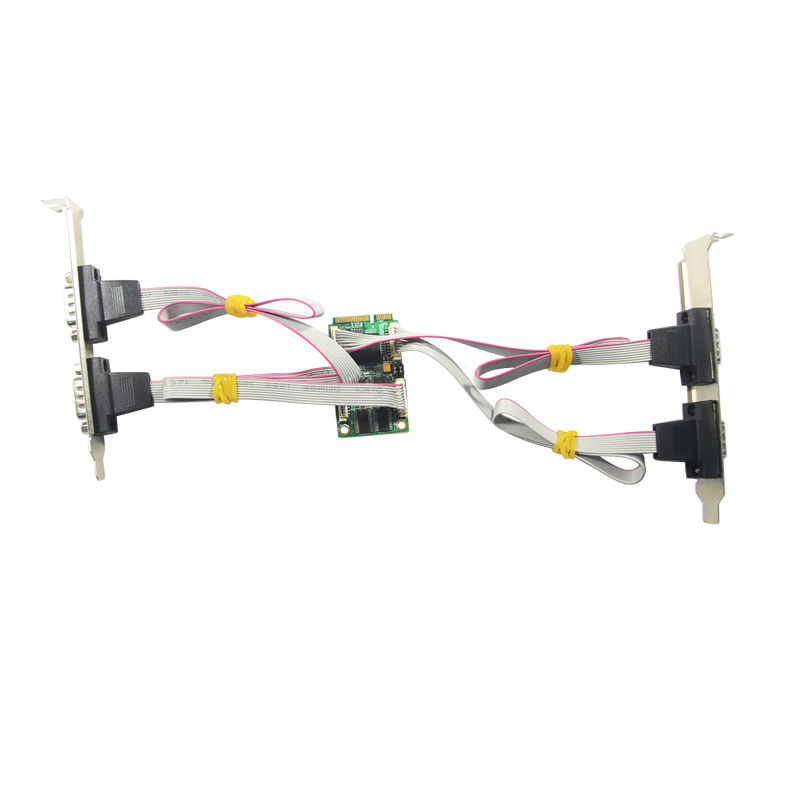

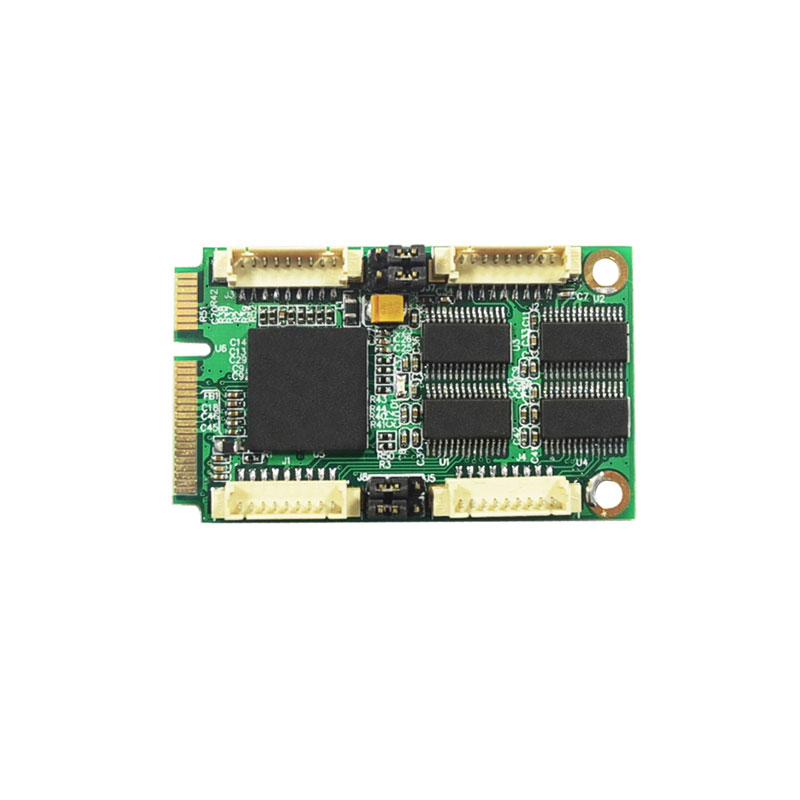

Product Name：4-ports Mini-pcie to 232 high-speed serial card
Specification Model：ZP-7784
Parameter Description:
☆ meet the four 232 standard;
☆ Complies with PCI-E Mini Card Electrical Specifications Revision1.2
☆ Complies with Full-Mini (F1) Card type slot specifications
☆ RS232 signal: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI;
☆ serial (RS-232) interface, the product using the United States imported industrial chip program, high temperature PCB circuit board design and production, after a long period of rigorous testing, stable performance, fast transfer rate, good compa
Device Requirements: Devices with Mini PCI-Express slots
This serial card is suitable for serial devices such as PC, mobile terminal, modem, printer, Advantech / EVOC, scanner, single chip, PLC, embedded industrial automation system, automatic teller machine (ATM), point of sale terminal (POS) , Automated retail kiosks, financial payment ATM systems, transportation systems, factory automation and process control, building automation, medical systems, remote access servers, and storage network management.
Parameter Description:
☆ meet the four 232 standard;
☆ Complies with PCI-E Mini Card Electrical Specifications Revision1.2
☆ Complies with Full-Mini (F1) Card type slot specifications
☆ RS232 signal: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI;
☆ serial (RS-232) interface, the product using the United States imported industrial chip program, high temperature PCB circuit board design and production, after a long period of rigorous testing, stable performance, fast transfer rate, good compatibility, no loss Data or crash blue screen phenomenon, and with automatic identification function.
☆ 16550 compatible register set; the use of super-solid tantalum capacitor module, in the long-term high temperature work has a strong anti-oxidation and corrosive, so as to achieve a long service life, high temperature, the signal pulse has a strong adaptation Coordinated role.
☆ 256 bytes of transmit and receive FIFOs;
☆ automatic XON / XOFF software flow control;
☆ with multi-node automatic address detection;
☆ interface protection: 15KV ESD full signal protection, 600W comes with serial signal surge isolation protection.
☆ Automatic allocation of IRQ and I / O addresses.
☆ transmission rate per second: 100-921600bps (special environment rate up to 1Mbps)
☆ Data bits: 5,6,7,8
☆ parity: even, odd, no, logo, space; stop bit: 1,1.5,2
☆ flow control: Xon / Xoff, hardware
☆ Operating temperature: -40-85?C.
☆ Mini PCI-Express slot with a computer
☆ support Windows® Server2003, 2008,2012, Windows®XP, Vista, 7,8,8.1,10, Linux 2.6.27,2.6.31, 2.6.32, 3.x.x and newer and other operating systems
