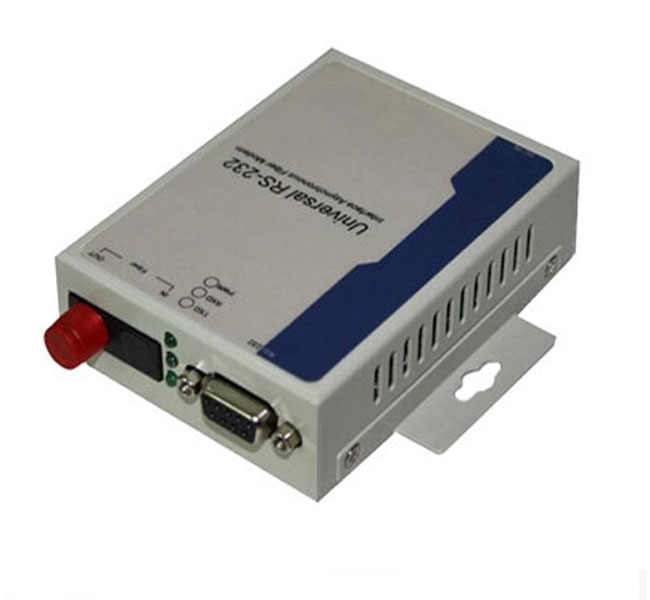

Product Name:Rs232 single-mode single-fiber server

Specification Model:ZP-317SM

☆ RS-232
☆ RS-485 signal: D +, D-, GND
☆ RS-422 signal: R +, R-, T +, T-, GND
☆ multi-mode communication to reach 2 km, single-mode to 20/40/60/80 km
☆ support point to point or loop (point to multipoint) connection, single-mode single fiber is divided into A, B side, need to use in pairs, zero delay automatically send
☆ support RS-232 multi-asynchronous communication protocol and adaptive technology, RS-232 port support 32 node polling function (can be customized 128 nodes)
☆ Working wavelength: 1310nm / 1550nm
☆ maximum communication rate of 0-500Kbps
