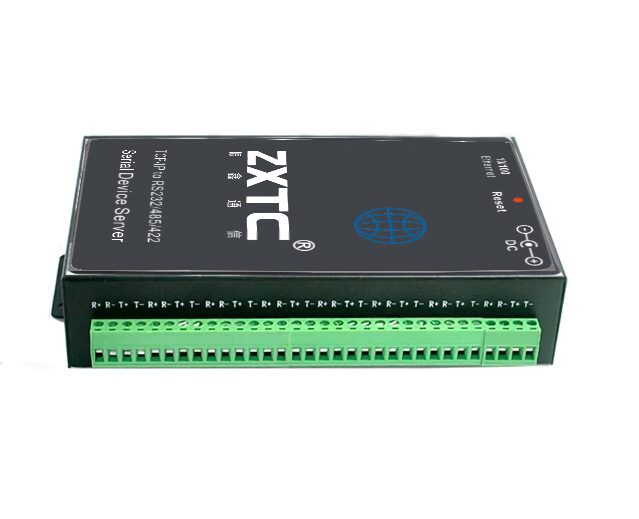

Product Name:8-port RS485 to Ethernet serial port server

Specification Model:ZP-8808B

☆ interface 485/422
☆ Serial number 8 mouth
☆ Check digit None, Even, Odd, Space, Mark
☆ data bits 5 ~ 9
☆ stop bit 1,2
☆ flow control RTS / CTS, DTR / DCR, XON / XOFF
☆ rate of 1000bps ~ 460800bps
Software features
☆ protocol TCP, HTTP, UDP, ICMP, ARP, IP, DNS, DHCP
☆ virtual serial port platform Windows 95/98 / ME / NT / 2000 / XP / WIN7
☆ configuration method Web browser, serial port AT command
☆ voltage input DC9 ~ 24V, 45mA
☆ support 1000bps ~ 460800bps baud rate.
☆ Shell material anti-electromagnetic material SECC steel plate
☆ Size L × W × H = 9.2cm × 19.7cm × 2.5cm
☆ Operating temperature, humidity -40 ~ 85 ℃, 5 ~ 95% RH
☆ Storage temperature, humidity -30 ~ 85 ℃, 5 ~ 95% RH
☆ support 9-bit data transmission function: 9 can be no, odd parity, even parity, 1,0, five ways to facilitate the communication in the 485 data frame and address frame.
☆ can be automatically found on the network equipment network server.
☆ support virtual serial port.
☆ support data write protection, to prevent random tampering.
☆ support the default configuration to start.
☆ LINK light connection indication.
☆ Hardware flow control CTS / RTS.
☆ 1KV network surge protection.
☆ shell with anti-radiation SECC board to ensure that the high electromagnetic radiation area can also work properly
