Wifi to Ethernet server Ethernet to wifi network port wifi and wifi to serial multi-function networking program

Time：2017-04-06 17:39:06
The company's production of Ethernet, WIFI, serial conversion of industrial communication modules are widely used in industrial field wiring, intelligent home, industrial intelligence, electricity and other complex environments. ZP-8822 multi-function converter can achieve wired Ethernet to wifi wireless, serial to wireless, serial to Ethernet three-dimensional function networking equipment. It has a serial port, Ethernet port, WAN, LAN port, wifi port, each function port independent transmission, mutual conversion communication, non-interference characteristics. Especially taking into account the industrial environment in the signal interference and wireless coverage of the blind spot, the use of this module can be a good solution to the relevant issues. Is the industrial wiring in the network solution in the effective artifact

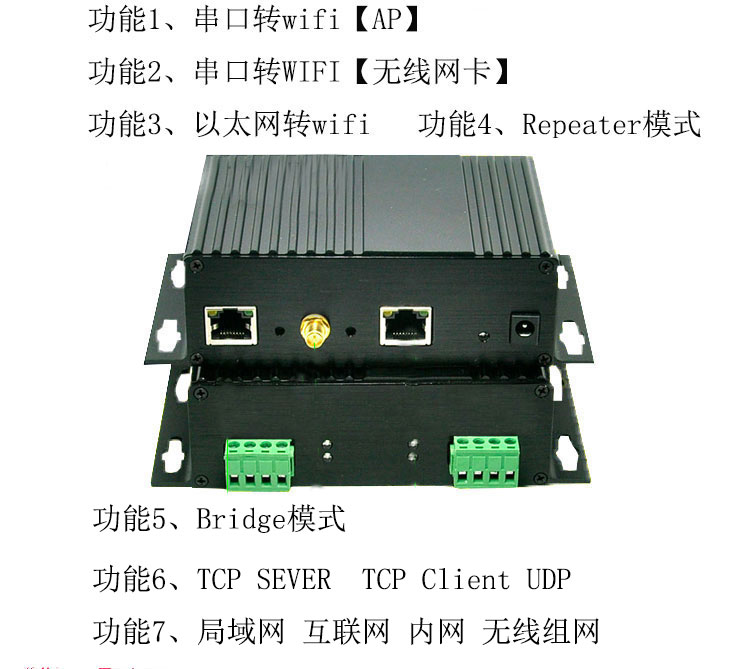

Product Name: Serial + WIFI + Ethernet two-way interchange multi-function serial port network server
Specifications Model: ZP-8822
wifi串口服务器

Based on the universal serial interface (RS232 / 485 or TTL level) in line with the network standard embedded module, built-in TCP / IP protocol stack, to achieve the user serial port, Ethernet, WIFI conversion between. The traditional serial device can transmit its own data through the Internet without changing any configuration. Provides a quick solution for users' serial devices to transmit data over Ethernet.
Support AP (wireless access point), Client (wireless client), Repeater (wireless relay), Bridge (wireless bridge), Router (wireless routing) five working modes,
☆ AP mode - default mode of operation. The device is a wireless access point in this mode, support plug and play, no configuration.
☆ Router mode - the device is equivalent to a wireless router, wired interface as a WAN, wireless LAN. Multiple wireless clients can share a broadband line to the Internet.
☆ Repeater mode - the use of equipment, wireless relay function to achieve the wireless signal relay and amplification, and the formation of a new wireless coverage area, and ultimately to extend the scope of the coverage of the wireless network.
☆ Bridge mode - the use of equipment bridging function, the first ZP-8822F and front-end wireless network to establish a wireless connection, and then send their own wireless signal to form a new wireless coverage, can effectively solve the signal weak and signal blind spots and other wireless coverage problems.
☆ Client mode - the AP working in this mode is a wireless client for the primary AP, which is equivalent to a wireless network card.
